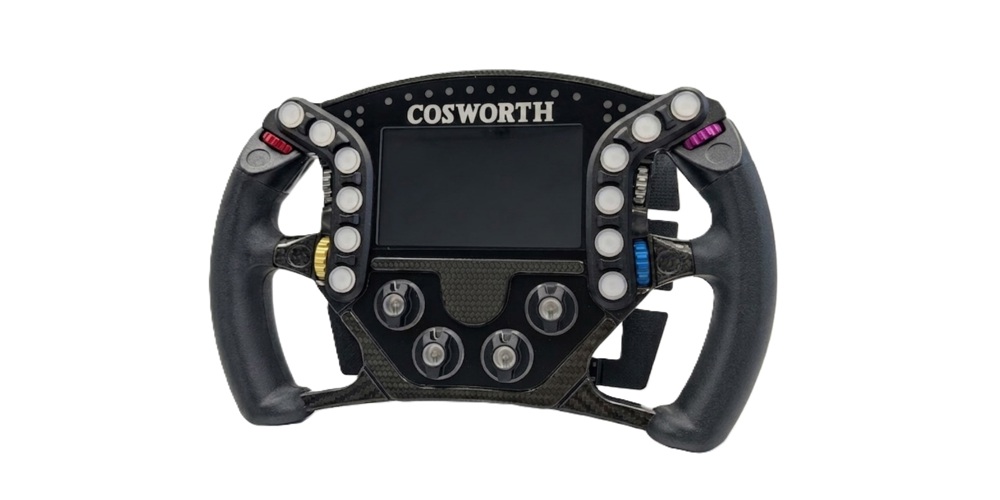

The Cosworth Carbon Wheel Mk3 EVO (CCW Mk3 EVO) is the latest iteration of the CCW Mk3 product line. The EVO model new for 2026 brings increased thumbwheel encoder count totalling 6x rather than 4x of the non-EVO variant, improved rotary switch ergonomics and grip finish.

Its combination of 12 backlit RGB LED push buttons, 4 x 12-way backlit RGB LED rotary switches, and 6 x 16-way thumbwheel encoders with built in buttons offer fast efficient control to the endurance driver.

The CCW Mk3 EVO retains dedicated inputs for up to two push-pull digital paddles and four additional inputs for various additional paddle combinations. All buttons and rotaries are backlit and fully configurable using the highly acclaimed Cosworth toolchain incorporating advanced Math, Logic, and Autocoding. Users can configure the colour of the backlight independently for each button or rotary and brightness controlled in two zones - button backlight and rotary backlight.

All inputs and diagnostics system channels can be transmitted over 2 failover CAN ports for use with other peripheral systems on the car. The CCW Mk3 EVO incorporates an industry leading sunlight viewable 1000nit, 800x480 WVGA, 5” TFT display that is fully controllable by Cosworth’s range of devices, or it can be run in a stand-alone mode with 4GB onboard ultra-high-speed eMMC storage.
